Power Probe Short/Open Circuit Tracer Kit

Description

The Power Probe PPECT3000 Short/Open Circuit Tracer Kit quickly identifies circuit status (short/open) and pinpoints where the fault is located within the circuit using LED directional arrows for tracing shorts and an LED ON/OFF indicator for tracing opens. With adjustable signal strength, it allows technicians to trace shorts and opens without removing plastic paneling, molding, or carpet.

Features

• Quickly identify shorts and opens on a circuit.
• Trace and pinpoint where a short or open is located.
• Test for intermittent conditions.
• LED directional arrows for short tracing and LED on/off indicator for open tracing.
• Adjustable signal strength allows for continued tracing without removing plastic paneling, molding, or carpets.
• LED light for tracing circuits in dimly lit areas.

Specifications

Transmitter:

• Operating Voltage: 6 V DC – 48 V DC
• Working Current: <200 mA
• Working Frequency: 4 kHz

Receiver:

• Power Supply: 2 × 1.5 V AAA
• Working Current: <15 mA when no signal is detected
• Power Consumption when Power Off: <10 µA

Transmitter & Receiver:

• Max Operating Temperature: 122 °F
• Max Storage Temperature: 158 °F
• Max Operating Relative Humidity: 80%
• Max Storage Relative Humidity: 80%

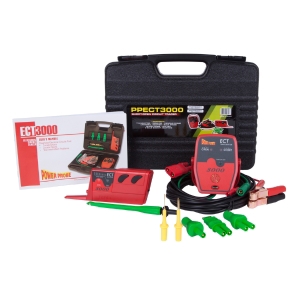

Includes

• 1 x Transmitter
• 1 x Receiver
• 1 x Back Probe
• 1 x Blade Probe
• 1 x Piercing Probe
• 3 x Bulb Adapters
• 1 x Lead with Alligator Clip
• 1 x Universal Lead
• 1 x Battery Clip Connectors
• 1 x Blow-Molded Storage Case
• 2 x AAA Batteries
• 1 x User Manual

Warranty

Two years
