$1,034.00

Direct from 3rd Party Supplier

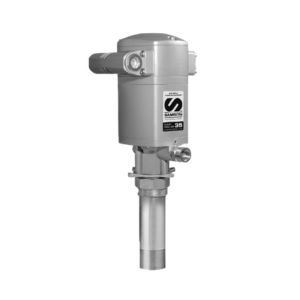

Pump Master 35 5:1 Oil Pump

Item Number: SMN535531 - Supplier: SAMOA CORPORATION

Description

Double acting air operated medium pressure delivery pump for oil distribution applications. Built in port for optional (PN 609 007) pressure relief valve.

Product Specifications

Pump Pressure Ratio: 5:1
Continuous Duty Flow Rate: 3.2 gpm (12 L / min)
Maximum Free Flow Rate: 8 gpm (30 L / min)
Air Pressure Operating Range: 30-175 psi (2-12 bar)
Maximum Outlet Pressure: 875 psi (60 bar)
Air Motor Effective Diameter: 3.15" (80 mm)
Air Motor Stroke: 3.15" (80 mm)
Air Consumption: 12.4 scfm (350 NL / min)
Air Inlet: 3/8" NPT(F)
Fluid Inlet: 1 1/2" NPT(F)
Fluid Outlet: 1/2" NPT(F)
Wetted Materials: Aluminum, Steel, NBR, Polyurethane, Hard chromed steel
Noise Level: 80 dB
Application : Stub pump with bung, stub pump, 55 gal drum
Simultaneous Dispense Points: 1-3
Maximum Line Length: 500' (150 m)
Pump Description: Heavy Duty Medium Pressure
